XYTABLES

XYZ Tables for Automation

INR 199000

Description

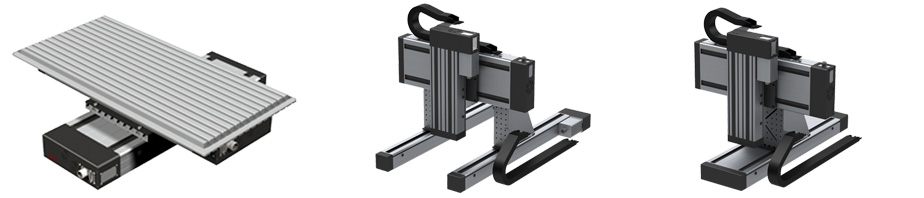

XYZ tables for automation Large format XYZ Units • Effective travel ranges : from 440 x 480 mm to 1, 380 x 2, 480 mm, z-axis 220 or 300 mm • Clamping surface : from 625 x 1, 100 mm to 1, 500 x 3, 050 mm • Passage height : optionally 235 mm or 435 mm • Drive system : DC (series GFV) or AC (series GFY) servo drives, precision ball screw driven • Travel speeds : 8 m/min (series GFV); 12 m/min (series GFY) • Repeatability depending : on the assembly of the plants; on average approx. 0.02 mm • Weight : 450 kg to 650 kg Application fields: Basis for the construction of Machines and systems for: • Drilling and milling • Laser and water jet cutting • Measuring and testing • Soldering, welding and many more applications
