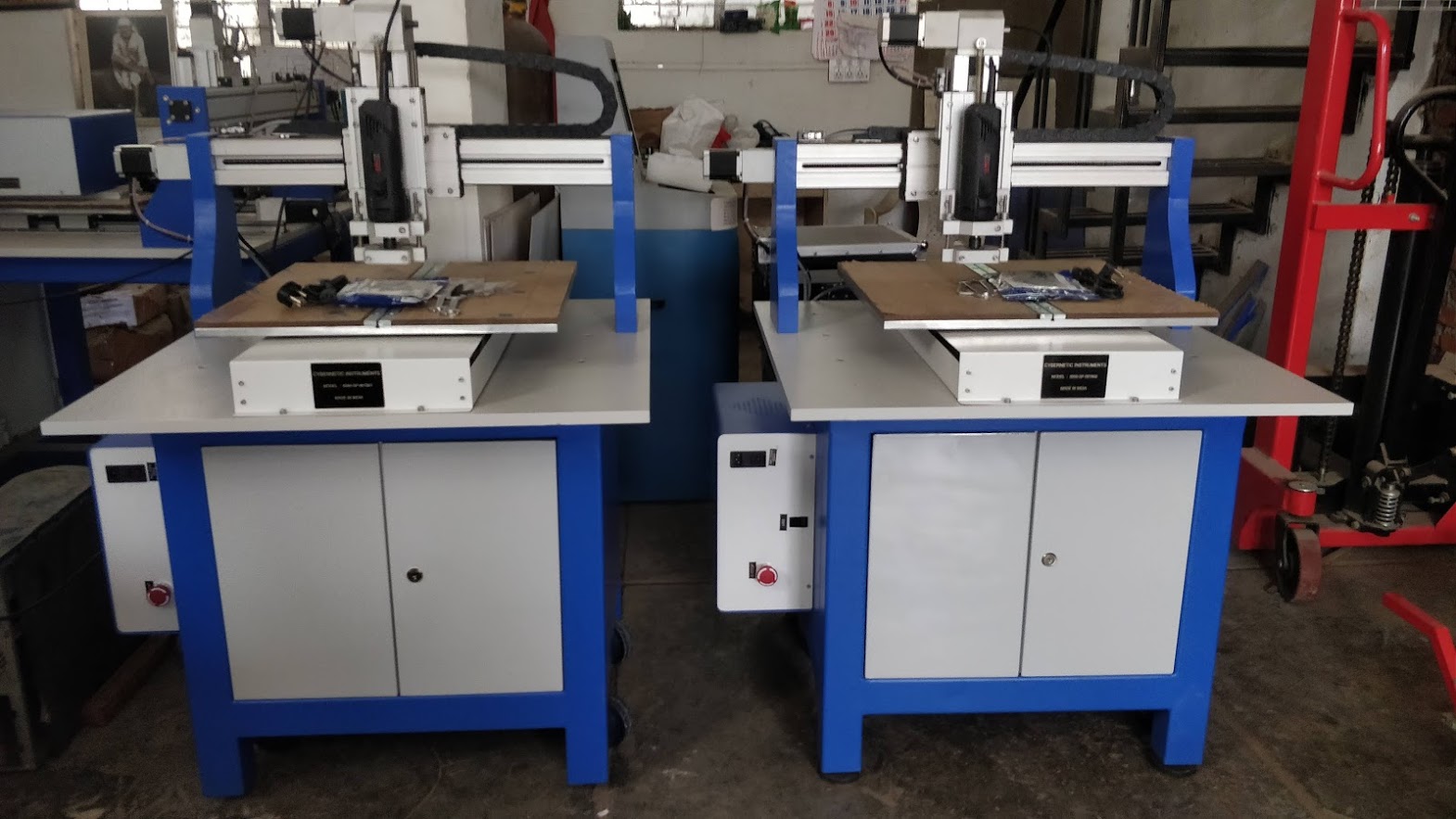

Quick Drill series from Cybernetic are one of the most advanced CNC PCB drilling & routing Machines with modern features for accurate and Fast drilling & complex routing Performance. Quick Drill single / dual / three spindle models is a compact machine that occupies very small space. This machine is really a workhorse and can be used continuously 24 hrs a day & 7 days a week. Machines are complete with drill import and profile routing software. Machine comes with standard water cooled 60000 rpm & 1.2 Kw power (optional high speed spindle up to 100K rpm). Any other Spindle can be installed on Z axis because of universal T slotted plate attached on Z-axis. Single Spindle PCB Drilling / Routing Machine Quick Drill Model 5050: PCB Drilling & Routing Area - Single Spindle model 500 x 500mm, Double Spindle : 250 X 500 mm Special Features : Compact & Economical Rigid construction of high quality ball screws and linear bearings on all axes. Positional Accuracy : 0.01 mm Machine bed with universal fixture system.Suitable for dowel Pin stack system. Spindle option 1: 8000-26000 RPM 900 Watt Spindle with 1/8" collet. Spindle option 2 : 5000-Upto 100K RPM HF Spindle with 1/8" collet. Heavy-duty stepper/ AC servo motor on all axes. Drill speed: 100 hits/m. Supported file formats: Excellon, Dxf, Gerber, HPGL and many more. All machine parameters software controlled and configurable. Maximum speed per axis:(X/Y) 150 mm/s. (Z) 200 mm/s. Machines available in different sizes and models. Power supply 230V/AC 50-60HZ
